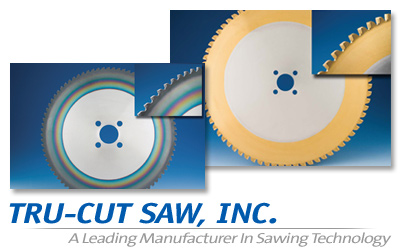

Tru-Cut's High Performance Carbide tipped saw blades for ferrous or non-ferrous cutting.
These carbide tipped saw blades cut steel bars five times faster than a bandsaw. Designed to cut low to medium alloy steels. Superior finish, longer life and faster cutting times.
Machines:
Stationary and flying cut off saws (single and multi-cut)
Applications:
Ferrous: Bars, Billets, Tube, Pipe and Plate
Non-Ferrous: Bars, Billets, Tube, Pipe, Plate,
Extrusions and Shapes
Cutting speeds:
SFPM 300 – 1,500 (ferrous)
SFPM 6,000 – 10,000 (non-ferrous)
|
|
|
| |
| Product Range |
| Blade Type |
Diameters |
Kerf |
Tooth Count |
Type of Material
To Cut |
| Throwaway |
200mm – 860mm |
1.5mm – 8.0mm |
40T – 260T |
ferrous / non-ferrous |
| Resharpenable |
200mm – 1727mm |
1.5mm – 12.0mm |
40T – 260T |
ferrous / non-ferrous |
|
| |
| Aggressor Saw Blade Sizes |
| Blade Type |
Diameters |
Kerf |
Tooth Count |
| 250mm |
2.0 |
32/40mm |
60,72,80,100T |
| 285mm |
2.0 |
32/40mm |
60,72,80,100,110T |
| 315mm |
2.2 |
32/40mm |
54,60,72,80,100,120T |
| 350mm |
2.2 |
32/40/50mm |
60,80,100,120,140T |
| 360mm |
2.6 |
32/40/50mm |
60,80,100,120,140T |
| 370mm |
2.6 |
40/50mm |
60,80,100,120,140T |
| 425mm |
2.6 |
40/50mm |
60,80,100,120,140T |
| 450mm |
2.8 |
40/50mm |
60,80,100,120,140T |
| 460mm |
2.7 |
40/50mm |
60,80,100,120,140T |
| 560mm |
3.2 |
50mm |
60,80,100,120,140T |
| 580mm |
3.2 |
80mm |
60,80,100,120,140T |
| 630mm |
3.2 |
80mm |
60,80,100,120,140T |
Custom sizes and tooth counts also available upon request.
Please visit our build your saw blade page or contact our sales department with your requirements.
